OUTDOOR KIOSKS

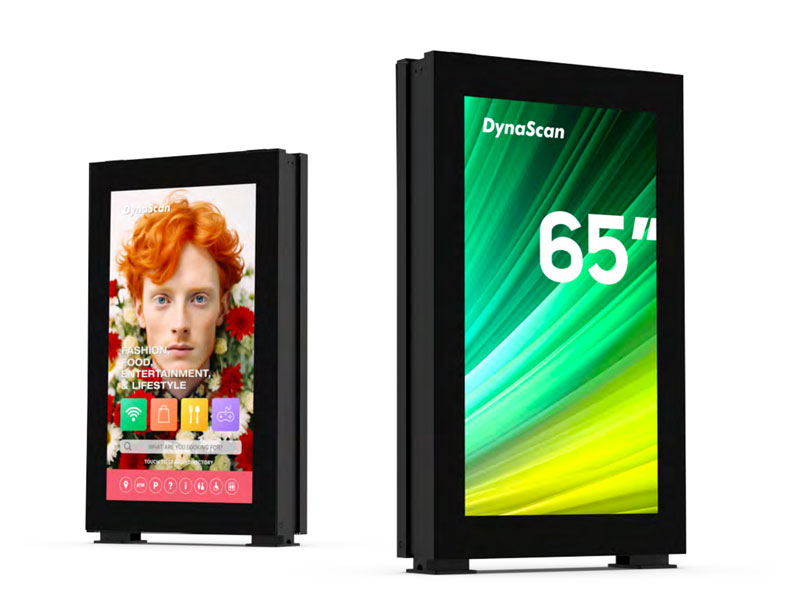

65” 4000 nits Dual-Sided Ultra-High Brightness Outdoor Kiosk
Model DK652DR5

The DynaScan DK652DR5 is built to deliver reliable, high-impact messaging in outdoor environments where visibility and durability are critical. Its double-sided design allows you to reach audiences from both directions, making it ideal for high-traffic areas where maximizing exposure matters.

With ultra-high brightness, content remains clear and easy to read even in direct sunlightβ€”so your messaging stays effective throughout the day. The 65-inch 4K UHD display provides sharp, detailed visuals that help your content stand out and remain legible at a distance, whether for advertising, wayfinding, or public information.

Designed for real-world conditions, the DK652DR5 is engineered to handle the challenges of outdoor deployment. Its sealed construction helps protect against dust and water, while the reinforced glass and all-metal housing offer durability against everyday wear and public interaction. This results in a dependable solution that minimizes maintenance and keeps your display performing consistently over time.

Whether used for advertising or information delivery, the DK652DR5 combines visibility, durability, and flexibility to support effective outdoor communication.

view complete series

Full Outdoor LCDs Series Product Line

DK752DR5
75” 4000 nits 4K UHD Dual-Sided Outdoor Kiosk

DK752DN5
75” 4000 nits 4K UHD Dual-Sided Outdoor Kiosk

DK862DR4
86” 3500 nits UHD Dual-Sided Ultra-High Brightness Outdoor Kiosk

DK862DH4
86” 3500 nits 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box

DK861LR4
86” 3500 nits Single-Sided Ultra-High Brightness Outdoor Kiosk

DK752DH5
75” 4000 nits 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box

DK751LN5
75” 4000 nits 4K UHD Single-Sided Ultra-High Brightness Outdoor Kiosk

DK652DR5
65” 4000 nits Dual-Sided Ultra-High Brightness Outdoor Kiosk

Product Features

SUNLIGHT VIEWABLE IMAGE
DUAL-SIDED DESIGN
VIEWABLE WITH POLARIZED LENSES
VANDAL RESISTANT
WEATHER PROOF
INTELLIGENT THERMAL MANAGEMENT

IP56 Weather Resistant

Rain or shine, DynaScan outdoor displays can endure what mother nature has to offer. All-metal rustproof construction with IP56 weather protection resists water and dust from entering the display even inΒ some of the harshest environments.

Dual-Sided Design

A double-sided display offers a versatile way to reach both internal and external audiences at once, enabling businesses to tailor content for customers inside while attracting passersby outside.

IK10 Vandal Resistance

WIth a tough, steel frame and double laminated glass with IK10 protection, DynaScan outdoor displays are durable and secure.

Robust, Ready-to-install Outdoor Solution

With an all-in-one design and a variety of video input options, DynaScan outdoor kiosks offer a feature-packed display solution that is ready for rapid deployment.

Sunlight Viewable Image

With a brightness of 4000 nits, DynaScan outdoor kiosks ensure clear visibility even in direct sunlight. This high level of brightness makes them ideal for outdoor environments, where harsh sunlight can often wash out standard screens.Β

Filterless Design

Filters not only reduce cooling efficiency by lowering air intake, but they can also cause a product failure if not properly maintained. DynaScan employs a proprietary thermal management system that doesn’t require filters.

DK652DR5

65” 4000 nits Dual-Sided Ultra-High Brightness Outdoor Kiosk

  • ​​​​​​​ LCD Panel Size: 65" (x2)
  • ​​​​​​​ Native Resolution: 3840 x 2160
  • ​​​​​​​ Brightness: 4000 nits
  • ​​​​​​​ Light Lifetime (Typ.): 100,000 hrs
  • ​​​​​​​ Contrast Ratio: 1200:1
  • ​​​​​​​ Color Depth: 10 bits
  • ​​​​​​​ Response Time (Typ.): 9 ms
  • ​​​​​​​ Viewing Angle (H/V): 178Β° / 178Β°
  • ​​​​​​​ Polarized Sunglasses Support: Yes
  • ​​​​​​​ Power Supply: Internal
  • ​​​​​​​ Rated Voltage: 100-240V AC ~ 50/60HZ
  • ​​​​​​​ Power Consumption (Typ./Max.): 650 W / 1600 W
  • ​​​​​​​ Bezel Width (T/B/L/R): 146.3 / 146.3 / 108.6 / 108.6 mm
  • ​​​​​​​ Cabinet Color: Black
  • ​​​​​​​ Kiosk Dimension (LxHxD): 1025.0 x 1728.0 x 250.0 mm
  • ​​​​​​​ Weight: 300 kg
  • ​​​​​​​ Orientation: Portrait
  • ​​​​​​​ High Security Lock: Yes
  • ​​​​​​​ Protection Glass: 4+4 mm laminated tempered glass
  • ​​​​​​​ Language: English
  • ​​​​​​​ Support SNMP (Up to V3.0): Yes
  • ​​​​​​​ Image Retention Protection: Yes
  • ​​​​​​​ Ambient Light Sensor: Yes
  • ​​​​​​​ Power On/Off Scheduling: Yes
  • ​​​​​​​ Backup Player Built-in: Yes
  • ​​​​​​​ HDMI: x6 (2160p)
  • ​​​​​​​ USB 3.0: x2
  • ​​​​​​​ Micro SD Slot: x2
  • ​​​​​​​ Audio: x2
  • ​​​​​​​ RS-232: In x2
  • ​​​​​​​ RJ-45: x4 (LAN)
  • ​​​​​​​ Operating Temperature: -30Β°~50Β° C
  • ​​​​​​​ Storage Temperature: -20Β°~60Β° C
  • ​​​​​​​ Humidity: 5% ~ 95% RH Non-condensing
  • ​​​​​​​ Environmental Rating: IP56 / IK10 / ASTM G155
  • ​​​​​​​ Operating system: Android 11.0
  • ​​​​​​​ Processor: MT9950
  • ​​​​​​​ Clock speed: 1.8 GHz
  • ​​​​​​​ Main Memory Interface: DDR4, 4G
  • ​​​​​​​ Graphics: Mali-G52
  • ​​​​​​​ Storage: Internal:16GB eMMC Flash External: Support Micro SD , Up to 128GB(FAT32/NTFS)
  • ​​​​​​​ Multimedia: 4K 10bits VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)
  • ​​​​​​​ CE / CB / FCC / ETL / PSE / RoHS / AS / NZS
PDF ICON
DK652DR5 Data Sheet
453.02 KB
Download
PDF ICON
DynaScan Product Brochure
24.52 MB
Download

Android is a trademark of Google LLC.Β The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.

Images are shown with optional equipment

All specifications are subject to change without notice.
