OUTDOOR KIOSKS

86” 3500 nits 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box
Model DK862DH4

The DynaScan DK862DH4 is designed to help your message stand out in demanding outdoor environments. Its dual-sided hybrid design lets you combine dynamic digital content with a backlit light box, giving you more flexibility to engage audiences from multiple directions and maximize campaign impact.

With a high-brightness display built for outdoor visibility, your content stays clear and readable even in bright daylightβ€”making it well-suited for busy public spaces where attention is limited and conditions are unpredictable. The large 86-inch 4K UHD screen delivers crisp, detailed visuals that help communicate your message effectively at a distance.

Engineered for dependable outdoor use, the DK862DH4 is built to withstand the elements and everyday public interaction. Its sealed design helps keep out dust and water, while the reinforced glass and durable metal housing provide added protection against damage and wear. This means less downtime, lower maintenance, and reliable performance in high-traffic locations.

Whether you’re running advertising, public information, or wayfinding, the DK862DH4 offers the visibility, flexibility, and durability needed for consistent outdoor operation.

view complete series

Full Outdoor LCDs Series Product Line

DK752DR5
75” 4000 nits 4K UHD Dual-Sided Outdoor Kiosk

view full details

DK752DN5
75” 4000 nits 4K UHD Dual-Sided Outdoor Kiosk

view full details

DK862DR4
86” 3500 nits UHD Dual-Sided Ultra-High Brightness Outdoor Kiosk

view full details

DK862DH4
86” 3500 nits 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box

view full details

DK861LR4
86” 3500 nits Single-Sided Ultra-High Brightness Outdoor Kiosk

view full details

DK752DH5
75” 4000 nits 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box

view full details

DK751LN5
75” 4000 nits 4K UHD Single-Sided Ultra-High Brightness Outdoor Kiosk

view full details

DK651DR5
65” 4000 nits Dual-Sided Ultra-High Brightness Outdoor Kiosk

view full details

Product Features

SUNLIGHT VIEWABLE IMAGE
HYBRID DIGITAL & STATIC
SMART LIGHT BOX

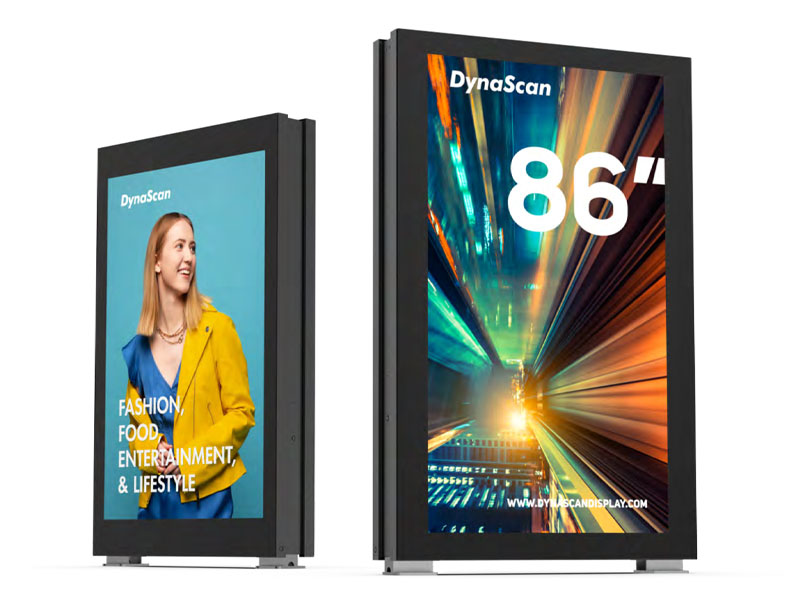

800 view product photos
VANDAL RESISTANT
WEATHER PROOF
4K UHD RESOLUTION

IP56 Weather Resistant

Rain or shine, DynaScan outdoor displays can endure what mother nature has to offer. All-metal rustproof construction with IP56 weather protection resists water and dust from entering the display even inΒ some of the harshest environments.

Hybrid Digital & Static Design

The hybrid design offers the flexibility to present dynamic digital content on one side and a static poster on the reverse.

IK10 Vandal Resistance

WIth a tough, steel frame and double laminated glass with IK10 protection, DynaScan outdoor displays are durable and secure.

Robust Outdoor Solution

DynaScan outdoor kiosks offer a feature-packed display solution that can be adapted to fit a variety of applicationsβ€”from bus shelters to transit depots to shopping centers.

Sunlight Viewable Image

With sustained brightness of 3500 nits, DynaScan outdoor kiosks are easily viewed in direct sunlight.

Filterless Design

Filters not only reduce cooling efficiency by lowering air intake, but they can also cause a product failure if not properly maintained. DynaScan employs a proprietary thermal management system that doesn’t require filters.

DK862DH4

86” 3500 nits 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box

SPECIFICATIONS DOWNLOADS
  • ​​​​​​​ LCD Panel Size: 85.6" LCD (x1)
  • ​​​​​​​ Native Resolution: 3840 x 2160
  • ​​​​​​​ Brightness: 3500 nits
  • ​​​​​​​ Light Lifetime (Typ.): 100,000 hrs
  • ​​​​​​​ Color Depth: 10 bits
  • ​​​​​​​ Contrast Ratio: 3000:1
  • ​​​​​​​ Response Time (Typ.): 8 ms
  • ​​​​​​​ Viewing Angle (H/V): 178Β° / 178Β°
  • ​​​​​​​ Polarized Sunglasses Support: Yes
  • ​​​​​​​ Touch Function (Optional): P-Cap touch
  • ​​​​​​​ Bezel Width (T/B/L/R): 192.5 / 192.5 / 89.0 / 89.0 mm
  • ​​​​​​​ Poster Size (WxH): 1200 x 1800 mm
  • ​​​​​​​ Kiosk Visual Opening (WxH): 1160.0 x 1710.0 mm
  • ​​​​​​​ Power Supply: Internal
  • ​​​​​​​ Rated Voltage: 200-240 V ~ 50/60 Hz
  • ​​​​​​​ Power On Mode (Max.): 1470 W
  • ​​​​​​​ Bezel Width (T/B/L/R): 84.7 / 112.2 / 134.4 / 134.4 mm
  • ​​​​​​​ Cabinet Color: Black
  • ​​​​​​​ Dimension (WxHxD, w/o stand): 1338.0 x 2100.0 x 250.0 mm
  • ​​​​​​​ Weight: 350 kg
  • ​​​​​​​ Orientation: Portrait
  • ​​​​​​​ Glass: Double Laminated Tempered
  • ​​​​​​​ Air Vent: Yes
  • ​​​​​​​ Language: English
  • ​​​​​​​ Support SNMP (Up to V3.0): Yes
  • ​​​​​​​ Dimming Control: Yes
  • ​​​​​​​ Image Retention Protection: Yes
  • ​​​​​​​ Ambient Light Sensor: Yes
  • ​​​​​​​ Power On/Off Scheduling: Yes
  • ​​​​​​​ HDMI: x3 (2160p)
  • ​​​​​​​ USB 3.0: x1
  • ​​​​​​​ Micro SD Slot: x1
  • ​​​​​​​ Audio: x1
  • ​​​​​​​ RS-232: In x1
  • ​​​​​​​ RJ-45: x2 (LAN)
  • ​​​​​​​ Operating Temperature: -30Β°~50Β° C
  • ​​​​​​​ Storage Temperature: -20Β°~60Β° C
  • ​​​​​​​ Humidity: 10% ~ 100% RH Non-condensing
  • ​​​​​​​ Water and Dust Resistant Design: IP56
  • ​​​​​​​ Operating System: Android 11.0
  • ​​​​​​​ Processor: Cortex-A73
  • ​​​​​​​ Clock Speed: 1.8 GHz
  • ​​​​​​​ Main Memory Interface: DDR4, 4G
  • ​​​​​​​ Graphics: Mali-G52
  • ​​​​​​​ Storage: Internal: 16GB eMMC Flash External: Support Micro SD , Up to 128GB(FAT32/NTFS)
  • ​​​​​​​ Multimedia: 4K 10bits VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)
  • ​​​​​​​ CE / FCC / IEC60950-22 / RoHS
PDF ICON
DK862DH4 Data Sheet
436.33 KB
Download
PDF ICON
DynaScan Product Brochure
24.52 MB
Download

Android is a trademark of Google LLC.Β The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License.

Images are shown with optional equipment

All specifications are subject to change without notice.
