OUTDOOR KIOSKS

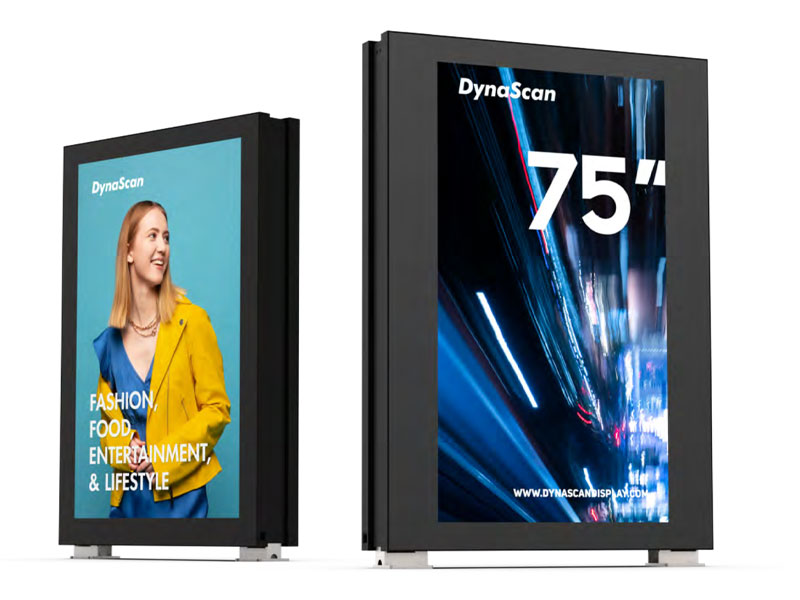

75” 4K UHD Outdoor Hybrid Kiosk with Ultra-High Brightness
Model DK752DH5

Capture attention in any outdoor environment with the DynaScan DK752DH5. Its dual-sided hybrid design combines dynamic digital content with a backlit light box, giving you the flexibility to run campaigns that stay visible and impactful around the clock.

With a powerful 4000-nit display, your content remains clear and vibrant even in direct sunlightβ€”ideal for high-traffic outdoor locations where visibility can’t be compromised. The 75-inch 4K UHD screen ensures sharp, detailed visuals that elevate brand presence and messaging.

Built to handle real-world conditions, the DK752DH5 is designed for reliable outdoor operation. Its sealed enclosure keeps out dust and water, while the reinforced glass and durable metal housing help protect against everyday wear, weather, and public interaction. The result is a kiosk you can deploy confidently in busy, exposed environments without constant maintenance concerns.

Whether used for advertising, wayfinding, or public information, the DK752DH5 delivers consistent performance, strong visibility, and long-term durability where it matters most.

view complete series

Full Outdoor LCDs Series Product Line

DK752DR5
75” 4000 nits 4K UHD Dual-Sided Outdoor Kiosk

DK752DN5
75” 4000 nits 4K UHD Dual-Sided Outdoor Kiosk

DK862DR4
86” 3500 nits UHD Dual-Sided Ultra-High Brightness Outdoor Kiosk

DK862DH4
86” 3500 nits 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box

DK861LR4
86” 3500 nits Single-Sided Ultra-High Brightness Outdoor Kiosk

DK752DH5
75” 4000 nits 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box

DK751LN5
75” 4000 nits 4K UHD Single-Sided Ultra-High Brightness Outdoor Kiosk

DK652DR5
65” 4000 nits Dual-Sided Ultra-High Brightness Outdoor Kiosk

Product Features

SUNLIGHT VIEWABLE IMAGE
HYBRID DIGITAL & STATIC
SMART LIGHT BOX
VANDAL RESISTANT
WEATHER PROOF
4K UHD RESOLUTION

IP56 Weather Resistant

Rain or shine, DynaScan outdoor displays can endure what mother nature has to offer. All-metal rustproof construction with IP56 weather protection resists water and dust from entering the display even inΒ some of the harshest environments.

Hybrid Digital & Static Design

The hybrid design offers the flexibility to present dynamic digital content on one side and a static poster on the reverse.

IK10 Vandal Resistance

With a tough, steel frame and double laminated glass with IK10 protection, DynaScan outdoor kiosks are durable and secure.

Robust Outdoor Solution

DynaScan outdoor kiosks offer a feature-packed display solution that can be adapted to fit a variety of applicationsβ€”from bus shelters to transit depots to shopping centers.

Sunlight Viewable Image

With sustained brightness of 4000 nits, DynaScan outdoor kiosks are easily viewed in direct sunlight.

Filterless Design

Filters not only reduce cooling efficiency by lowering air intake, but they can also cause a product failure if not properly maintained. DynaScan employs a proprietary thermal management system that doesn’t require filters.

DK752DH5

75” 4000 nits 4K UHD Outdoor Ultra-High Brightness Hybrid Kiosk with Light Box

  • ​​​​​​​ LCD Panel Size: 74.52"
  • ​​​​​​​ Native Resolution: 3840 x 2160
  • ​​​​​​​ Brightness: 4000 nits
  • ​​​​​​​ Light Lifetime (Typ.): 100,000 hrs
  • ​​​​​​​ Color Depth: 10 bits
  • ​​​​​​​ Contrast Ratio: 3000:1
  • ​​​​​​​ Response Time (Typ.): 8 ms
  • ​​​​​​​ Viewing Angle (H/V): 178Β° / 178Β°
  • ​​​​​​​ Polarized Sunglass Support: Yes
  • ​​​​​​​ Touch Function (Optional): P-Cap touch
  • ​​​​​​​ Bezel Width (T/B/L/R): 91.0 / 87.0 / 89.0 / 89.0 mm
  • ​​​​​​​ Poster Size (WxH): 1200 x 1800 mm
  • ​​​​​​​ Kiosk Visual Opening (WxH): 1160.0 x 1710.0 mm
  • ​​​​​​​ Power Supply: Internal
  • ​​​​​​​ Rated Voltage: 200-240V ~ 50/60HZ
  • ​​​​​​​ Power Consumption (Typ./Max.): 420 W / 940 W
  • ​​​​​​​ Digital Side Bezel Width (T/B/L/R): 97.6 / 137.5 / 203.3 / 203.3 mm
  • ​​​​​​​ Cabinet Color: Black
  • ​​​​​​​ Dimension (WxHxD, w/o stand): 1338.0 x 1888.0 x 250.0 mm
  • ​​​​​​​ Weight: 340 kg
  • ​​​​​​​ Orientation: Portrait
  • ​​​​​​​ Glass: Yes
  • ​​​​​​​ Air Vent: Yes
  • ​​​​​​​ High Security Key: Yes
  • ​​​​​​​ Language: English
  • ​​​​​​​ Support SNMP (Up to V3.0): Yes
  • ​​​​​​​ Dimming Control: Yes
  • ​​​​​​​ Image Retention Protection: Yes
  • ​​​​​​​ Ambient Light Sensor: Yes
  • ​​​​​​​ Power On/Off Scheduling: Yes
  • ​​​​​​​ HDMI: x3 (2160p)
  • ​​​​​​​ USB 3.0: x1
  • ​​​​​​​ Micro SD Slot: x1
  • ​​​​​​​ Audio: x1
  • ​​​​​​​ RS-232: In x1
  • ​​​​​​​ RJ-45: x2 (LAN)
  • ​​​​​​​ Operating System: Android 11.0
  • ​​​​​​​ Processor: Cortex-A73
  • ​​​​​​​ Clock Speed: 1.8 GHz
  • ​​​​​​​ Main Memory Interface: DDR4, 4G
  • ​​​​​​​ Graphics: Mali-G52
  • ​​​​​​​ Storage: nternal: 16GB eMMC Flash External: Support Micro SD , Up to 128GB (FAT32/NTFS)
  • ​​​​​​​ Multimedia: 4K 10bits VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)
  • ​​​​​​​ Operating Temperature: -30Β° C ~ 50Β° C
  • ​​​​​​​ Storage Temperature: -20Β° C ~ 60Β° C
  • ​​​​​​​ Humidity: 5% ~ 95% RH Non-condensing
  • ​​​​​​​ Water and Dust Resistant Design: IP56
  • ​​​​​​​ FCC / CE / IEC60950-22 / RoHS
PDF ICON
DK752DH5 Data Sheet
424.81 KB
Download
PDF ICON
DynaScan Product Brochure
24.52 MB
Download

Images are shown with optional equipment

All specifications are subject to change without notice.
